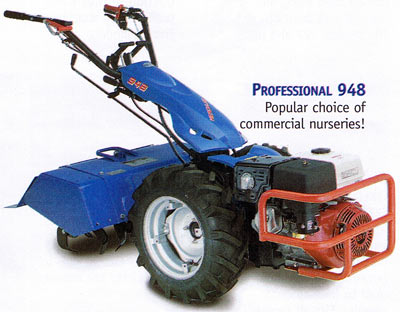

Hercules 948

Our most capable two-wheel tractor

13 HP Honda GX 390 Engine

Three Forward and three,  Reverse speed.  Rapid transport speed for towing a trailer

Accepts our largest 34” wide tiller



This is the largest BCS tractor designed for the most challenging applications usually with the 34" wide rototiller.  If you are farming many acres and this would be your principle soil preparation tool the 948 may be your answer.  With 3 working speeds when operating the tiller there is an optimum speed for tasks from fine seedbed preparation to rapid cultivating.  Large wheels and tires handle rough ground easily with wheel brakes to help control traction in loose ground.  This is one serious machine!



946 Specifications



Engine Size

13hp Honda GX390 Engine



Transmission



Drive Support

Ball bearings - no bronze bushings



Materials

Steel shaft & gears



Clutch

Heavy duty cone style clutch



Differential Wheel Drive

Yes, lockable with Steering/Parking Brakes



Speed (mph)



Rear Attachments

0.6, 1.4, 2.2 & 6.8 mph forward and

0.6, 1.4, &2.2 mph reverse



Front Mounted Attachments

0.6, 1.4,& 2.2 mph forward and

0.6, 1.4 & 2.2 mph reverse



Reverse Engagement



Shift Type

Instant Reverse at same speed as selected forward speed



Reverse Lockout?

Yes, stops operation of rear mounted attachments



Tiller Capacity



Width

34



Depth

8"



Tire Size

6.50" x 12.0"



Weight (tractor only)

363 lbs.







Attachments
